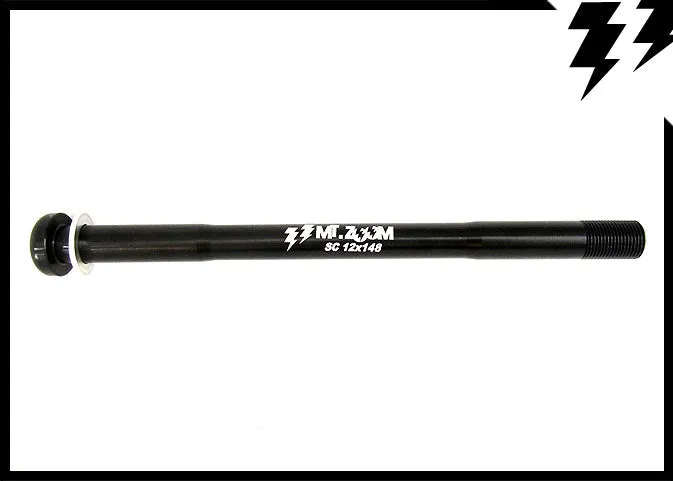

The MT ZOOM Scott/Santa Cruz style thru axle is simple, light, strong and excellent value. It weighs only 39g (excl washer). This is the standard 12mm x 148mm boost length, we have the standard version on another listing.

1.0mm thread pitch. Length from inner washer 173.5mm.

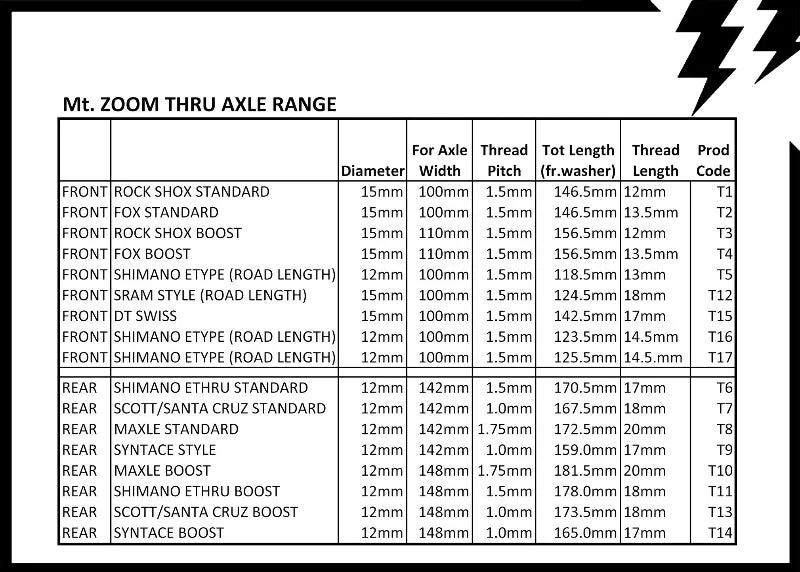

Note some boost frames are designed to still use the standard length axle.  If you are replacing an axle on a boost frame it is worth measuring it's length to see whether you need a boost length axle or a standard length one. Cross reference with the picture on here which shows the dimensions of all our axles.

Anodised black / 7075 Aluminium

2 year warranty

[split]

Key technical measurements:

Length from inner washer to end of thru axle: 173.5mm
Thread pitch 1.0 mm
Thread area length: 18mm
Inner axle maximum width: 12mm
Washer width: 1.5mm
Product Code: T13

[split]

The 1.5mm washer helps protect the paint on your frame/for drop out - its use is optional, removing it gives 1.5mm extra length to the axle.

Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM).
