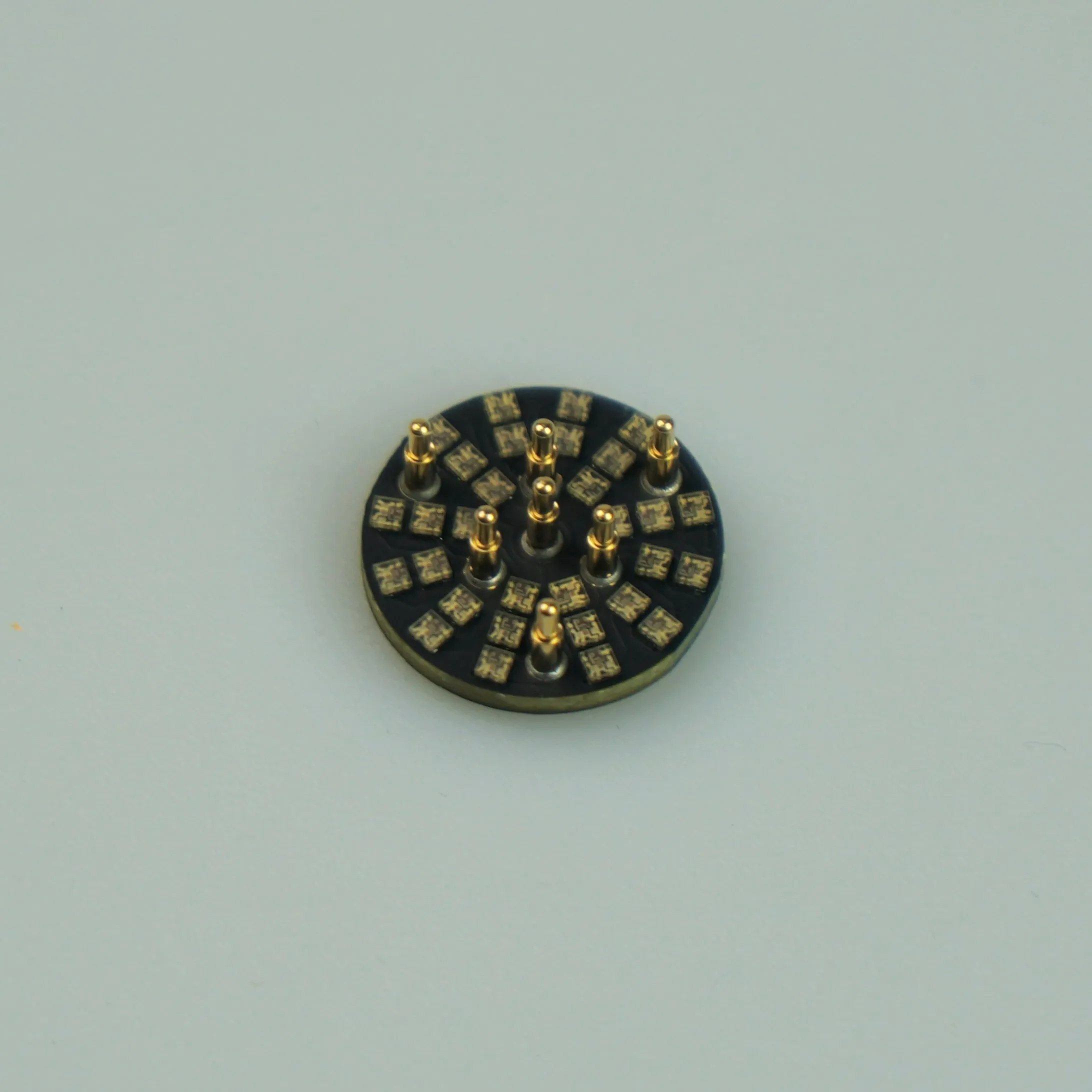

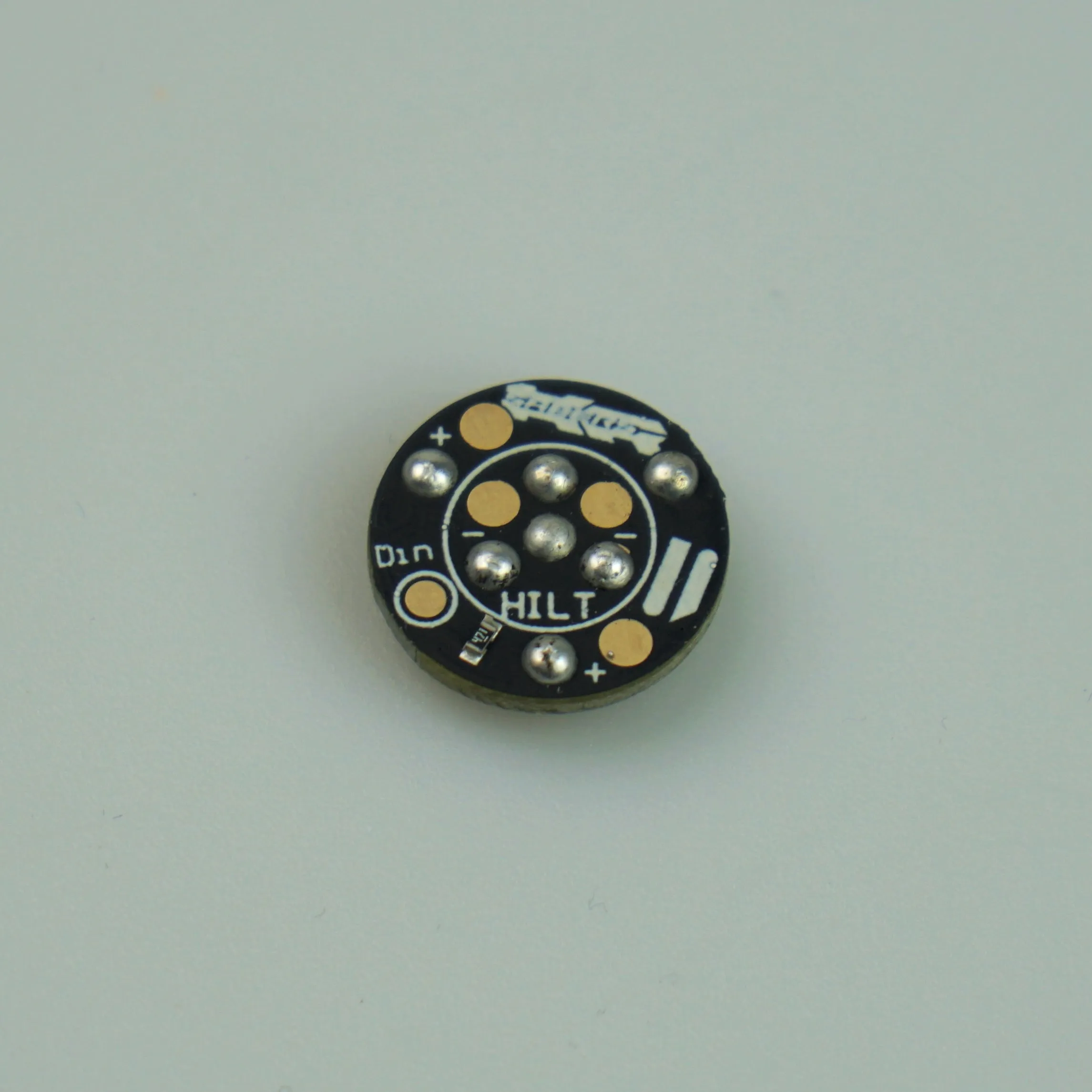

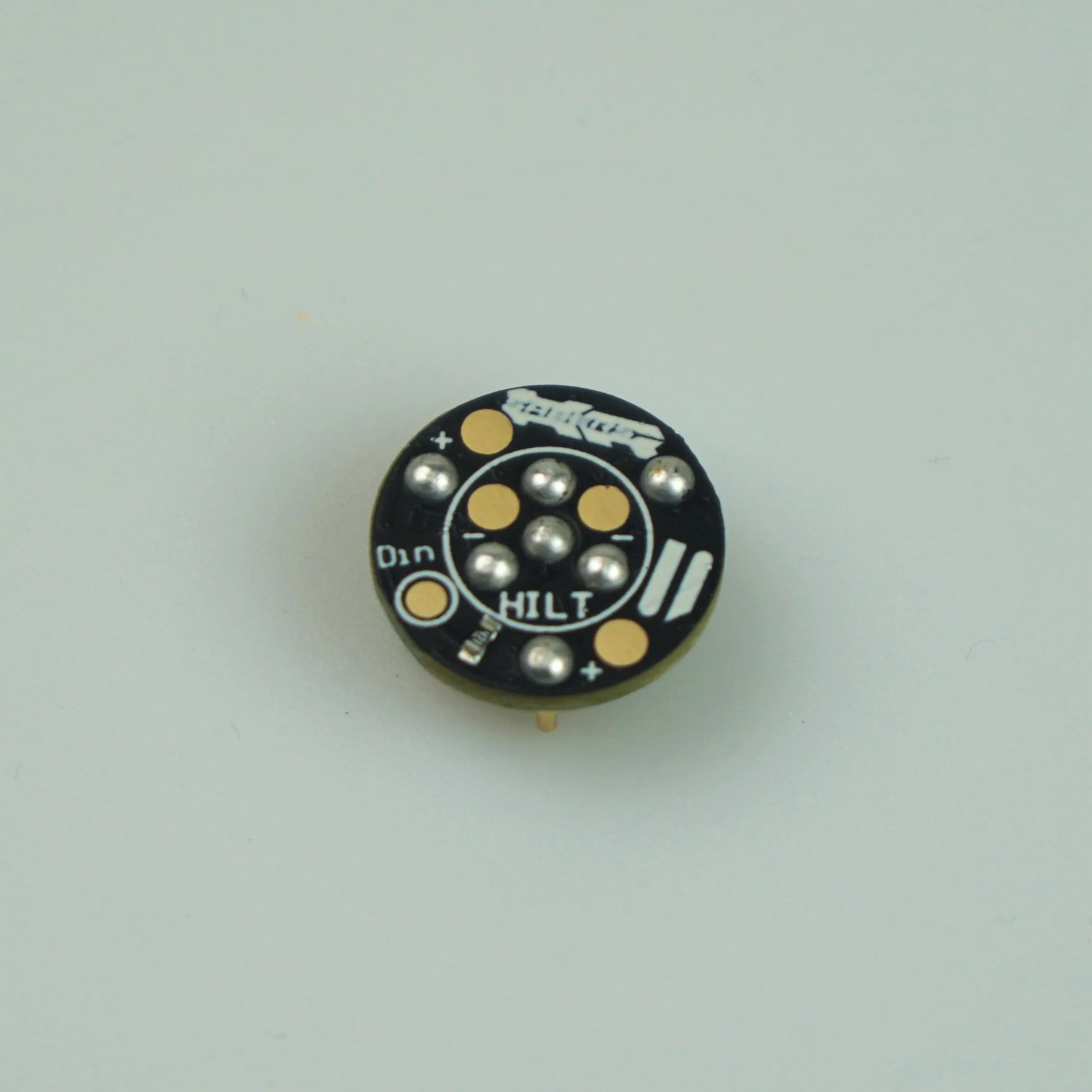

Here is the new 2023 ShtokCustomWorx ECO NPXL V4 Hilt Side PCB Connector.
These PCBs are still compatible with the V3 holders and lens covers. See below for links to holders and lens covers.

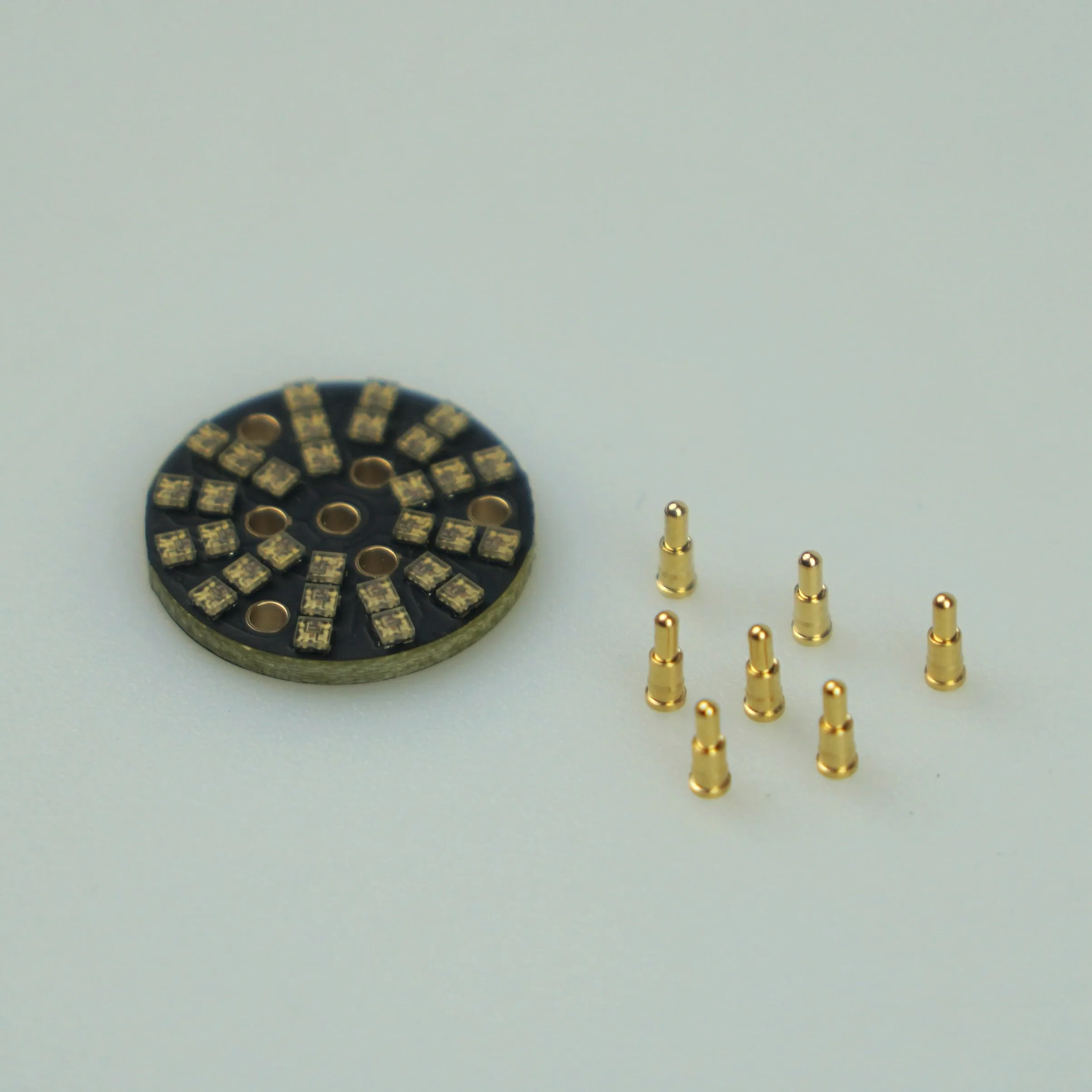

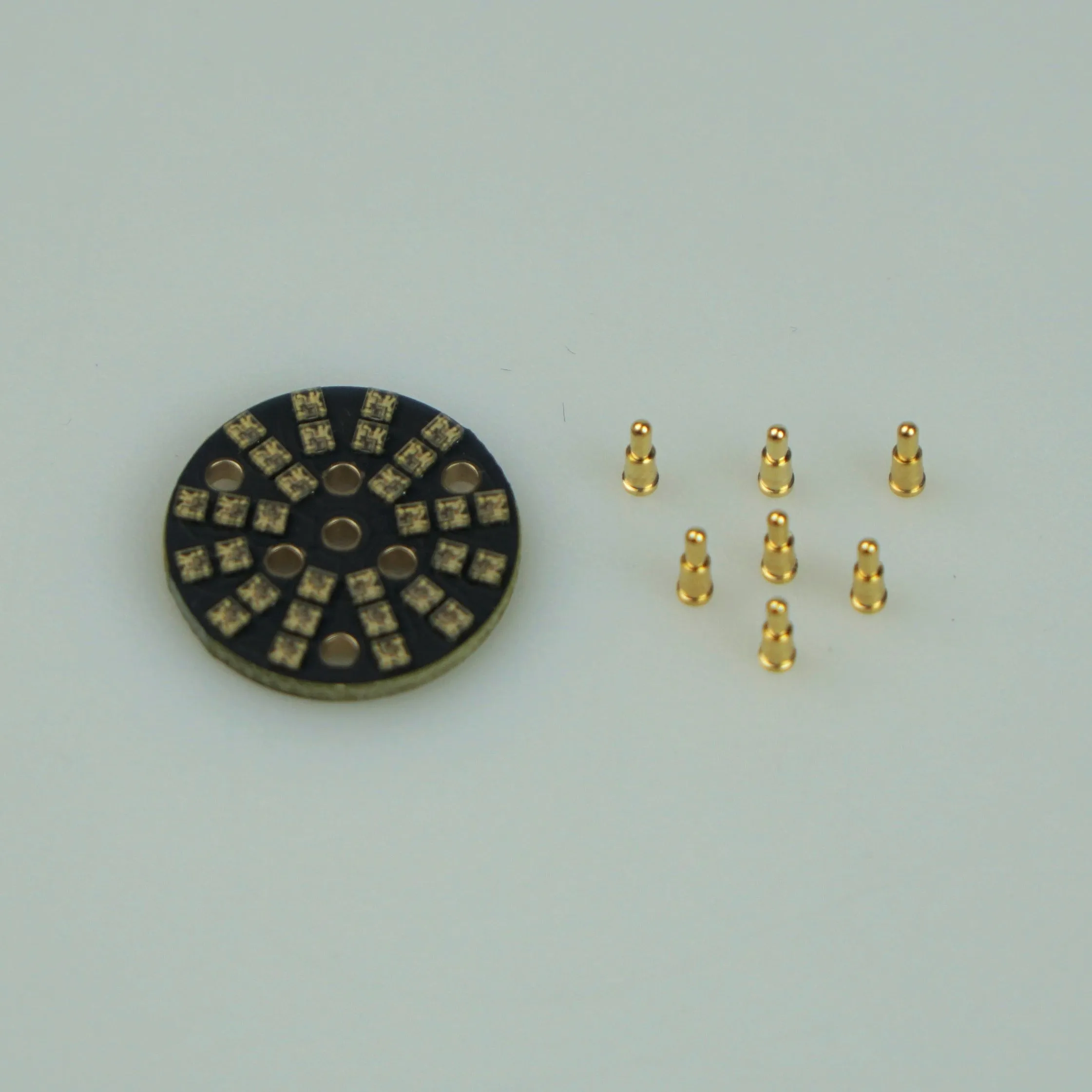

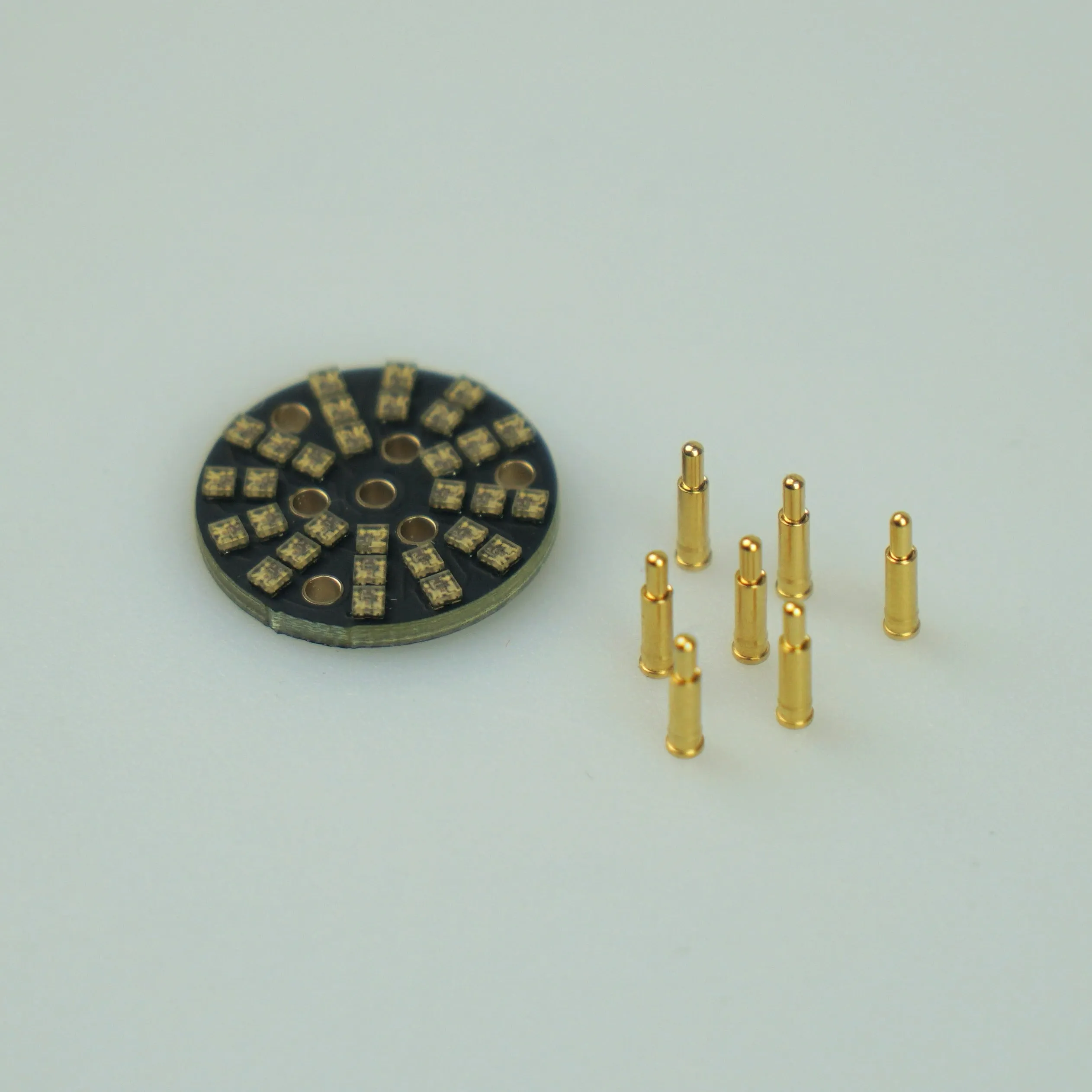

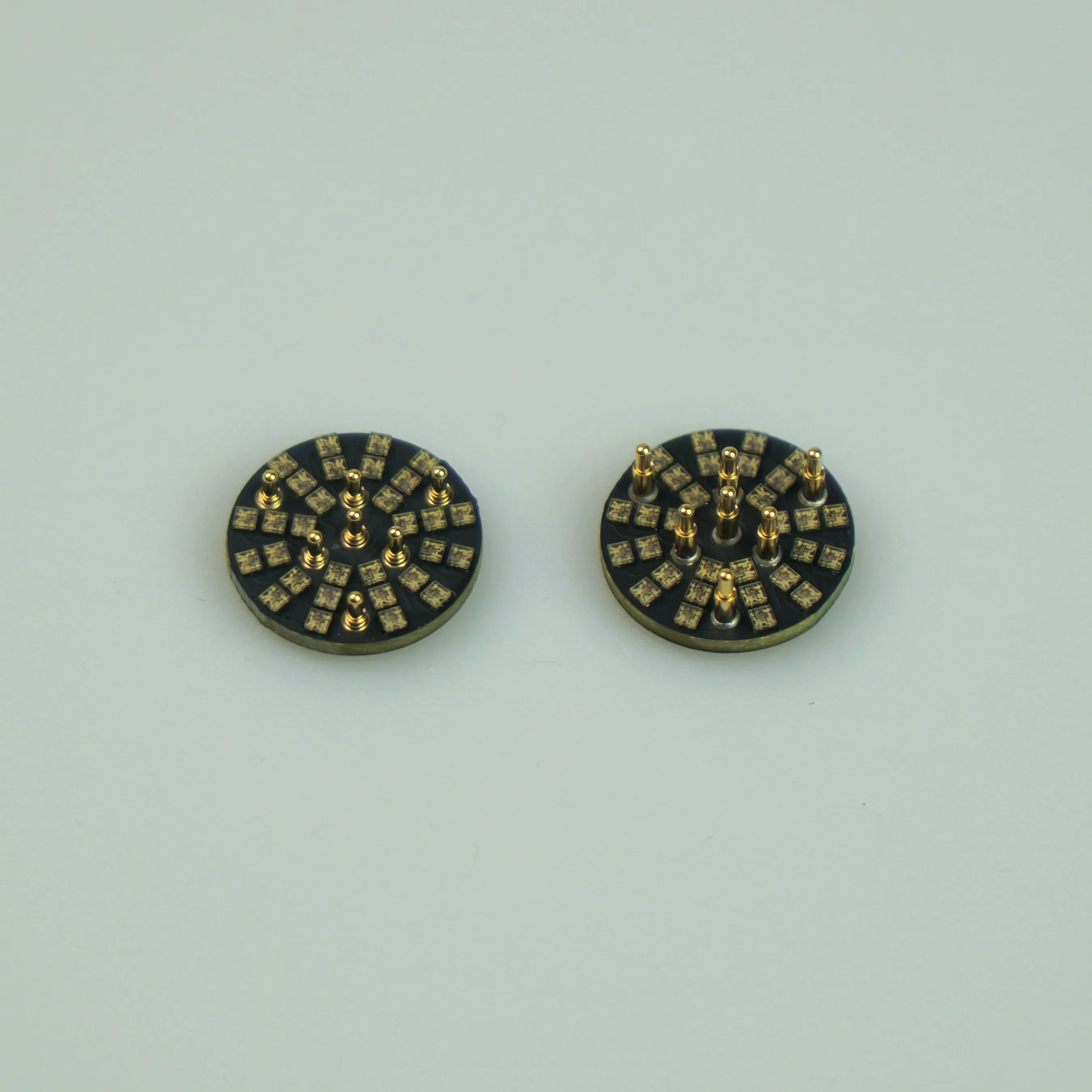

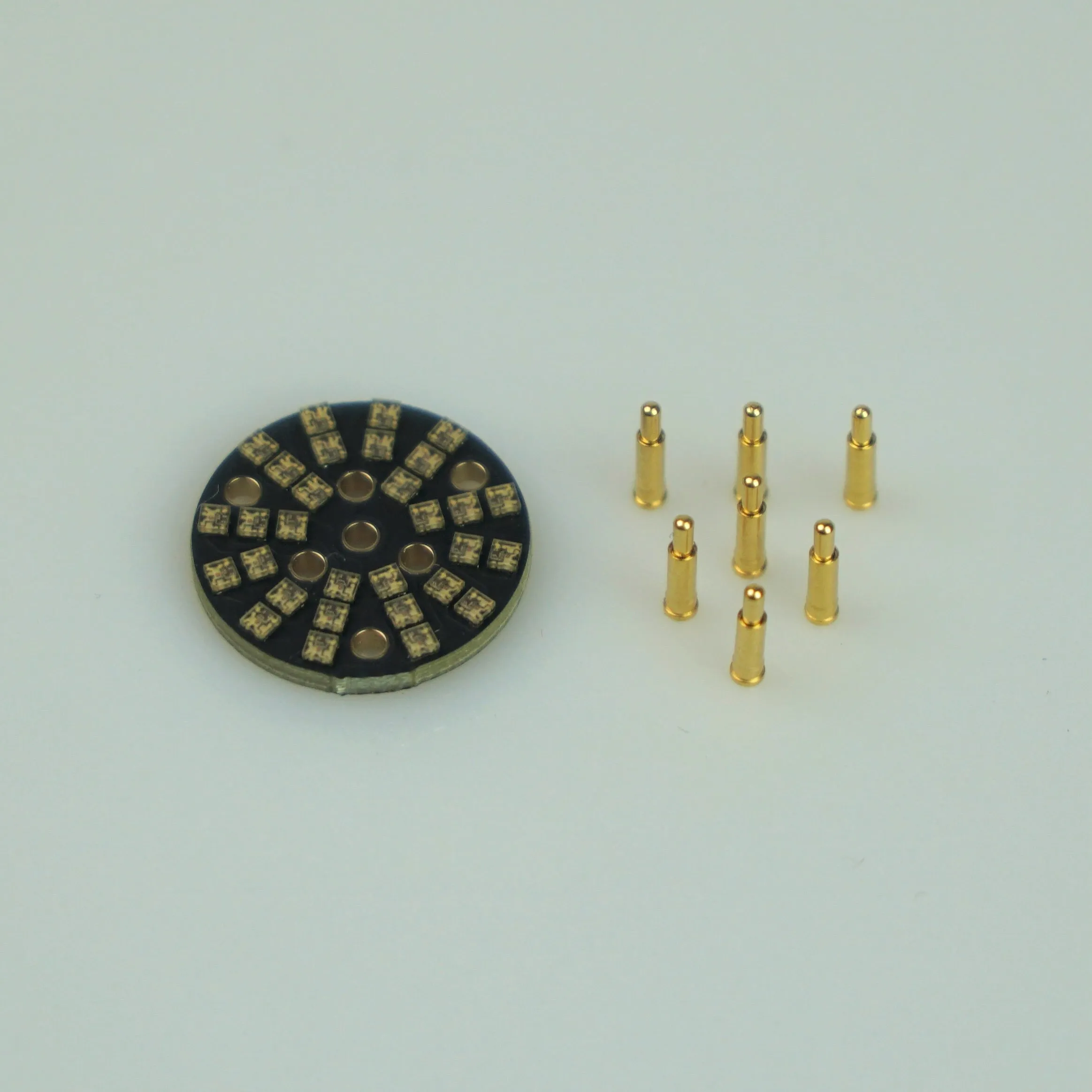

We offer these new connectors either pre-soldered/pre-assembled with pins for your convenience or you can choose an unassembled kit. Please be aware that due to gold plating tolerances, some pins may be a tighter fit than others. If assembling yourself, please take care to insert the pins safely.
There is also an SMD data resistor pre-mounted. This is for protection of the on-board LEDs. It is not for the Blade data signal. There is no resistor for the Blade data signal. Proffie has D1 already pre-resisted and most, if not all blades, are made with Data signal resistance anyway.
Please note the LEDs on these hilt side PCBs are, by default, setup to mirror blade effects only. They do not offer multiple LED configuration options. If you would like these features please order the standard NPXL V3 connectors.
Specifications and features:
- High quality components, manufacturing and assembling
- Reliable electrical connection
- 3-pole contact type: 1-pin Data, 3-pin Positive, 3-pin Negative
- Spring loaded Pogo pins (short and long style)

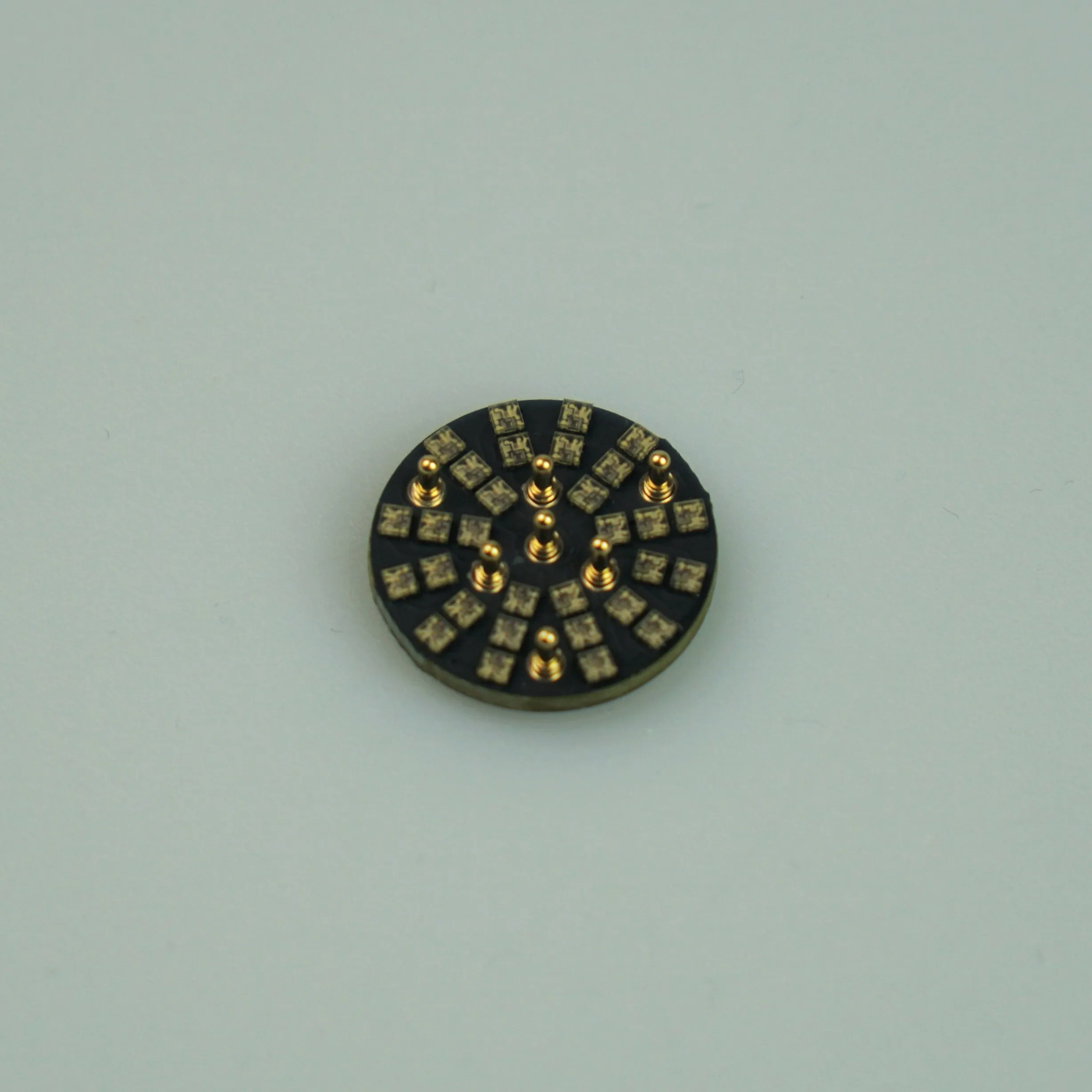

- 30 on-board RGB Neopixel LEDs
- Fully compatible with TCSS and KR Sabers blade side PCB connectors.
Dimensions:
- Hilt pcb: 17.5x17.5x2.5mm (without pins)
Please be sure that before ordering, you are fully aware of the shipping policies outlined here:
